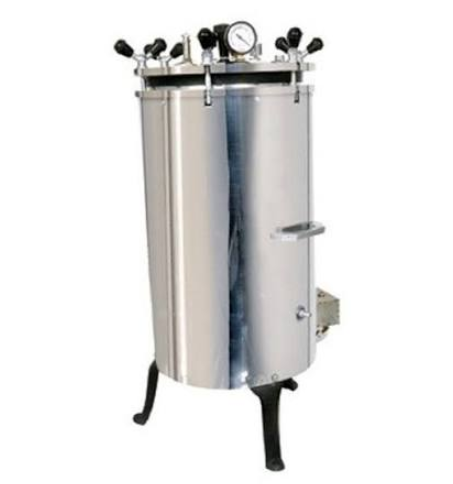

Electric Autoclave- Technical Specification
| Description of Goods | Technical Compliance |
| Type | Vertical, Top Loading Electric Steam Sterilizer |
| Model | PRO50 |
| Chamber Capacity | 50 Liters |
| Construction Material | Fully Stainless Steel (SS304) inner chamber and outer body with corrosion-resistant finish. |
| Chamber Size | Approx. Ø340–350 × 550 mm |
| Sterilization Temperature | Adjustable from 105°C to 134°C |
| Working Temperature | 121°C / 134°C standard sterilization cycles |
| Working Pressure | 0.22 MPa (22 PSI) |
| Maximum Pressure | 0.23 MPa |
| Heating System | Electric immersion heating element |
| Temperature Accuracy | ±1°C |
| Pressure Gauge | Analog pressure gauge for chamber pressure monitoring |
| Safety Features | Pressure safety valve, over-temperature protection, low water level protection, door safety interlock, automatic pressure release system. |
| Lid Locking System | Hand-wheel radial locking mechanism with silicone gasket |
| Sterilizing Basket | Two removable Stainless Steel baskets |
| Power Supply | AC 220–240V, 50 Hz |
| Drain System | Bottom drain valve for easy cleaning and maintenance |
| Mobility | Heavy-duty caster wheels for easy movement |
| Operating Method | Fully electric, automatic sterilization cycle with automatic shut-off and audible end-of-cycle alarm |
| Applications | Suitable for sterilizing surgical instruments, dressing materials, laboratory glassware, culture media, medical waste, and hospital equipment |
| Accessories | Stainless Steel baskets, power cable, drain hose, user manual |
| Finish | Smooth polished Stainless Steel, easy to clean and disinfect |
