Description of Goods	Technical Compliance
Product Name	Five Function Electric ICU Bed
Features	Minimum 4 (Four) motor system Electrical adjustments of backrest, footrest, height, Trendelenburg and Reverse Trendelenburg Bed should be various positions Fowler, Vascular and Cardiac Auto contour for optimum positioning to evenly distribute and to help prevent patient from sliding towards fool end of the bed Hand control unit Bed should be Auto-CPR button and Manual CPR for backrest. There should be CPR switch, in the event of the bed occupant suddenly requiring cardiopulmonary resuscitation the bed can be flattened within few seconds without sudden fall of the backrest (Automatic and Manually). The spring / Hydraulic system, which ever you are giving, should be easily cleanable corrosion resistant and decontaminated desire life span of ICU Bed recommended by manufacturer. Auto-regression system, Waterproof Nurse Control panel with backlight system. Bed should be single button option for Trendelenburg, Cardiac, Examination, Vascular and Patient Evacuation. Bed should be flashlight / LED light feature integrated on nurse control panel, Bed should be detachable stainless (Medical Grade-ASI-316) & HIPL structure, ABS /Polyethylene resin/ Polypropylene head and foot boards with push handles & angle indicator Easily cleanable, lockable and fold-down ABS / Polypropylene/Powder coated steel/Polyethylene resin & should have non-slip grip & lockable when pressure applied over side rail by the patient or anybody. Bed should be 4 section, detachable easy cleanable HPL mattress platform Bed should be lowering the height till 45-75 cm or more with nurse control to ensure safety and easy use Bed should be sub frame constructed with stainless non-magnetic steel (Medical Grade-ASI-316)/Epoxy Powder coated steel Bed should be gradually adjustable footrest Bed should be drainage bag hooks at both sides Bed should be IV pole sockets located at four corners Bed should be height adjustable non-magnetic stainless steel (Medical Grade-ASI-316) IV pole and IV pole max height 1.5m +10% approx. of same brand. The bed mounted on two or more telescopic columns or robust scissor mechanism. Bed should have protective Corner roller bumpers at four corner. 360 degree swivel and central lockable castors & can be fixed unidirectional during bed movement X-ray cassette holder at backrest Bed should be liquid ingress protection Built in Battery backup function minimum 30 minutes after main power failure.
Technical Specifications	Bed Dimensions: 103 x 228 cm + 10% Height Adjustment (without mattress): min. 45-75 cm or wider range (approx.) (adjustable with bed dimensions) Mattress Platform: min. (88 x 200)cm + 5% Backrest angle: 0° – 64° or more Footrest angle: 0° -21° or wider Trendelenburg angle: 0° -12° or more Reverse Trendelenburg angle: 0° -13° or more Castor diameter: min. 125 mm. Under bed clearance: min, 8cm at height of 34 cm Safe Working Load: 220 kg or more. Power input: 220 + 10% VAC, 50Hz
Mattress Specification	Foam Mattress consists of foam with a density of 38 kg/m3 foam and cuttings over the full width of the mattress. CNC cutting reducing contact points so distribute and reduce pressure on human body. Air passages, provide air circulation and prevent heat accumulation. Air passages reduce perspiration. Provides with anti-bacterial, waterproof, and breathable cover. Optimal thickness is 15 cm Size: adjustable with mattress platform according to manufacturer’s standard. Density: 38±2kg/m3 Cleaning: Autoclavable at 80 deg Cover should be Flame resistant, Durable, Urine and blood resistance, Scratch-proof, Dirt resistant, Antibacterial & Antifungal, Water vapor permeable, Resistant to conventional disinfectants.
Bedside Locker Specifications	ABS /Polypropylene/ Polyethylene resin Platform Epoxy painted metallic construction. Diagonal lockable castors. External Dimensions: min. (45 x 45 x 78 cm. (± 5%).

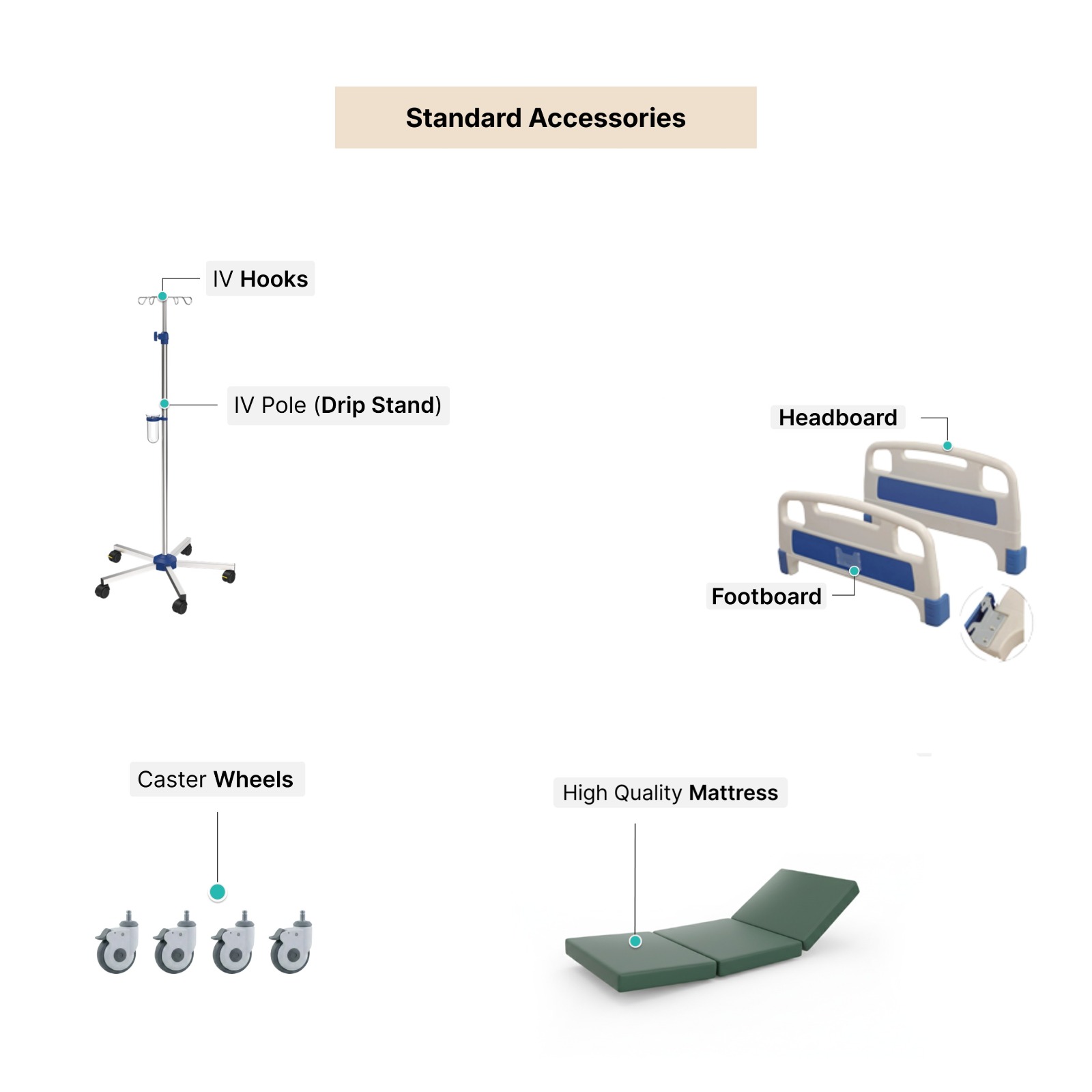

Supplied with bed standard accessories.	Oxygen bottle Holder-01 nos. File Holder-01 nos. Lifting pole-01 nos. IV pole-01 nos. Mattress-01 nos.
Quality Standards & Safety	US-FDA/CE approved Brand and Model engraved/embossed/printed Country of manufacturer and country of shipment same Bangladesh
Warranty, Spare Parts Availability & After Sale Service	Comprehensive 1 (one) year warranty with all spare parts and accessories (without consumables) after the date of installation & commissioning (functioning). Availability of spares parts must be for 3 years after the date of installation & commissioning (functioning).

-17%

Click to enlarge

Five-Function ICU Bed Electric with Standard Accessories (Premium) - Image 3

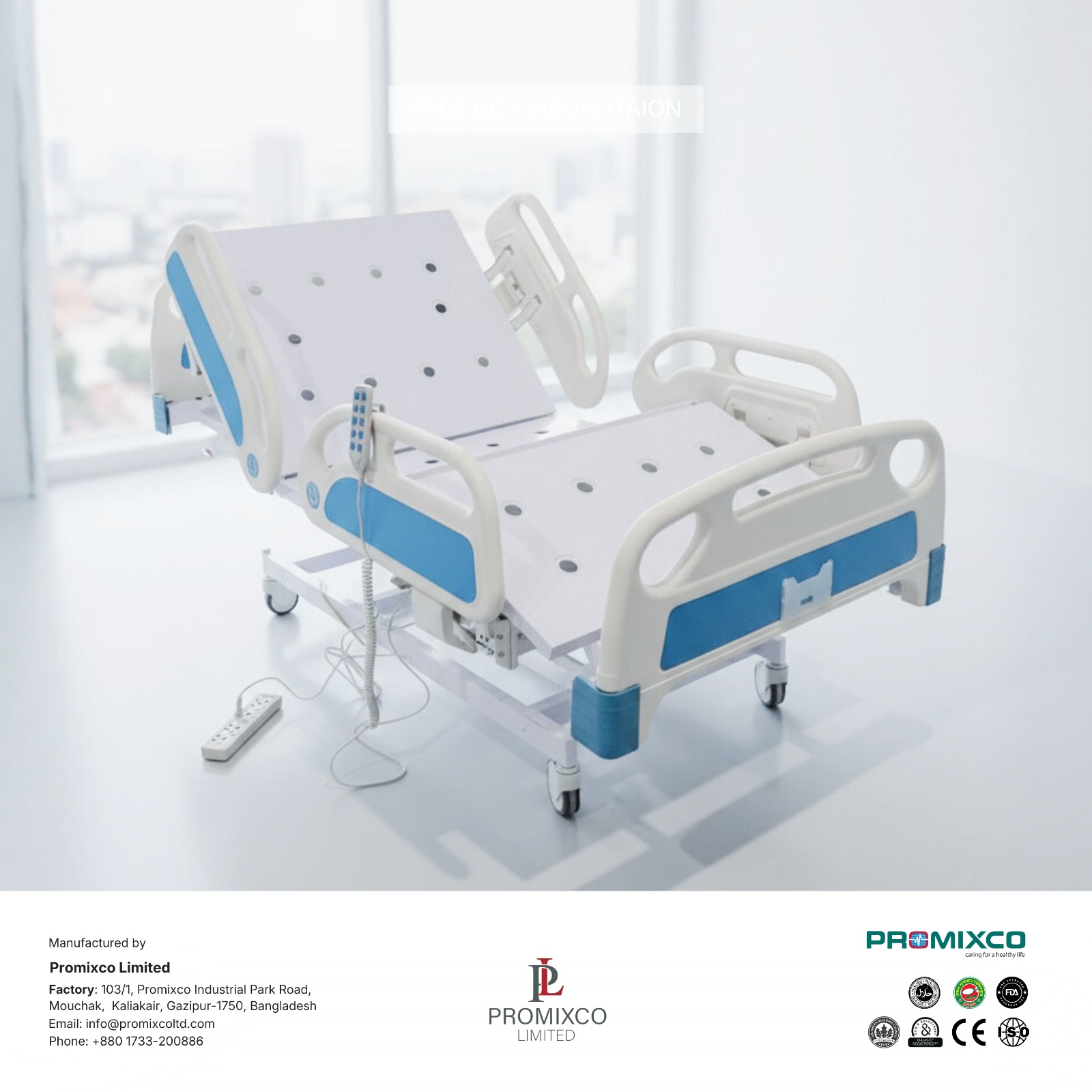

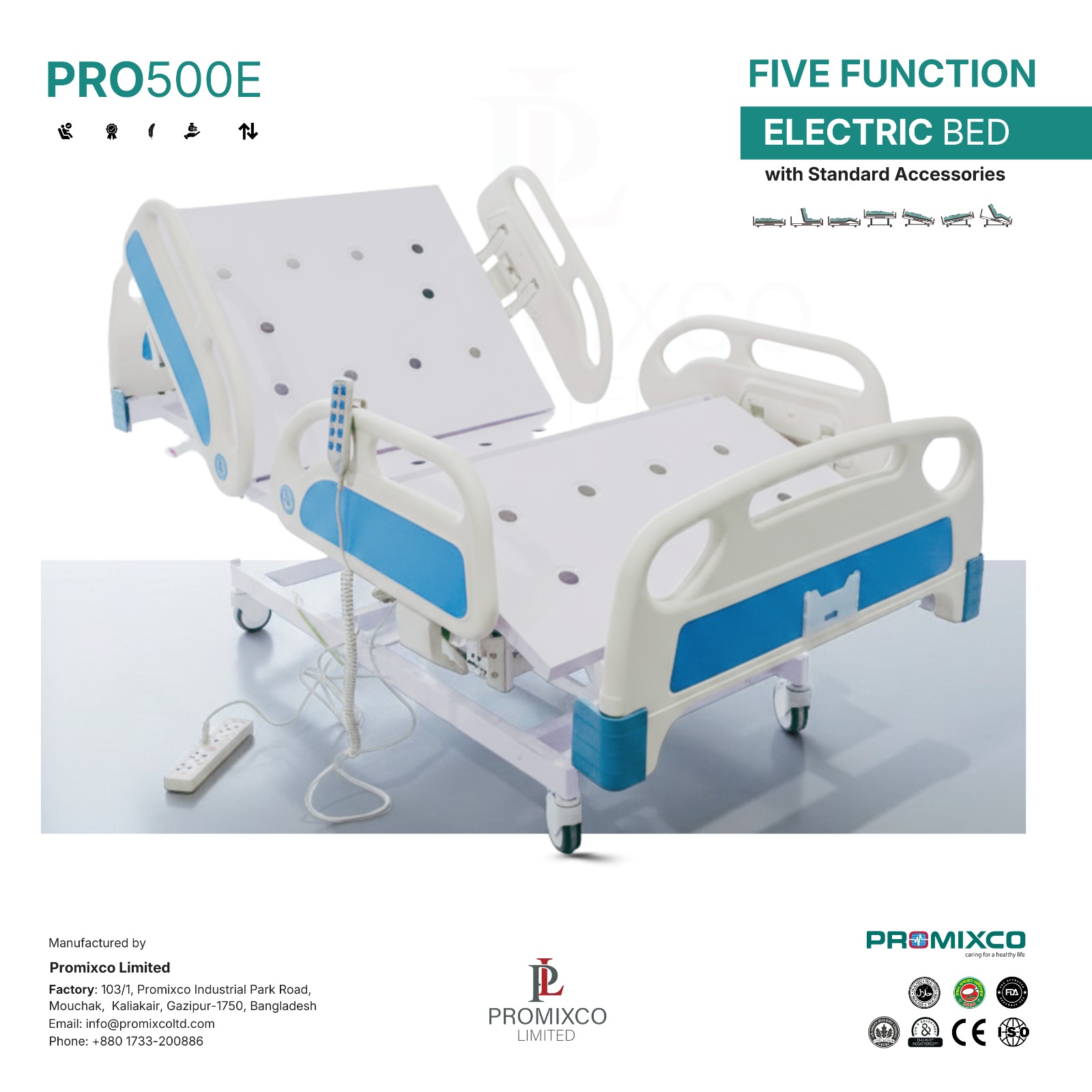

Five-Function ICU Bed Electric with Standard Accessories (Premium)

Name: Five-Function ICU Bed Electric with Standard Accessories (Premium) | Promix Co. Ltd
SKU: PRO-HF2023
Price: 125000.00 BDT
Availability: InStock

Original price was: ৳ 150,000.00.Current price is: ৳ 125,000.00.

Need help? Chat with us.

Compare

Add to wishlist

179 People watching this product now!

SKU: PRO-HF2023 Categories: Hospital Furniture, Hospital Bed Tag: featured

Description
Shipping & Delivery

Description

Description of Goods	Technical Compliance
Product Name	Five Function Electric ICU Bed

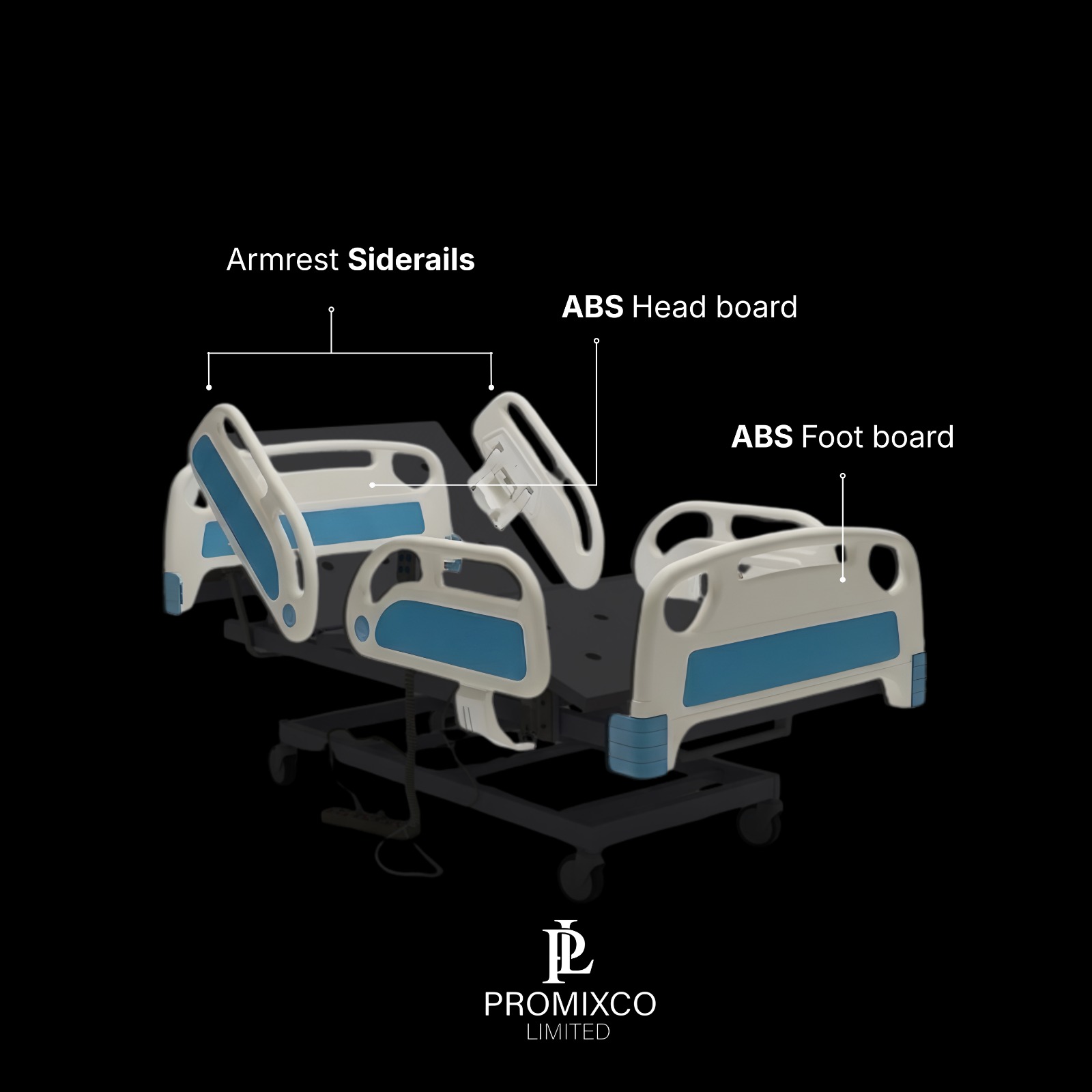

Features	Minimum 4 (Four) motor system Electrical adjustments of backrest, footrest, height, Trendelenburg and Reverse Trendelenburg Bed should be various positions Fowler, Vascular and Cardiac Auto contour for optimum positioning to evenly distribute and to help prevent patient from sliding towards fool end of the bed Hand control unit Bed should be Auto-CPR button and Manual CPR for backrest. There should be CPR switch, in the event of the bed occupant suddenly requiring cardiopulmonary resuscitation the bed can be flattened within few seconds without sudden fall of the backrest (Automatic and Manually). The spring / Hydraulic system, which ever you are giving, should be easily cleanable corrosion resistant and decontaminated desire life span of ICU Bed recommended by manufacturer. Auto-regression system, Waterproof Nurse Control panel with backlight system. Bed should be single button option for Trendelenburg, Cardiac, Examination, Vascular and Patient Evacuation. Bed should be flashlight / LED light feature integrated on nurse control panel, Bed should be detachable stainless (Medical Grade-ASI-316) & HIPL structure, ABS /Polyethylene resin/ Polypropylene head and foot boards with push handles & angle indicator Easily cleanable, lockable and fold-down ABS / Polypropylene/Powder coated steel/Polyethylene resin & should have non-slip grip & lockable when pressure applied over side rail by the patient or anybody. Bed should be 4 section, detachable easy cleanable HPL mattress platform Bed should be lowering the height till 45-75 cm or more with nurse control to ensure safety and easy use Bed should be sub frame constructed with stainless non-magnetic steel (Medical Grade-ASI-316)/Epoxy Powder coated steel Bed should be gradually adjustable footrest Bed should be drainage bag hooks at both sides Bed should be IV pole sockets located at four corners Bed should be height adjustable non-magnetic stainless steel (Medical Grade-ASI-316) IV pole and IV pole max height 1.5m +10% approx. of same brand. The bed mounted on two or more telescopic columns or robust scissor mechanism. Bed should have protective Corner roller bumpers at four corner. 360 degree swivel and central lockable castors & can be fixed unidirectional during bed movement X-ray cassette holder at backrest Bed should be liquid ingress protection Built in Battery backup function minimum 30 minutes after main power failure.
Technical Specifications	Bed Dimensions: 103 x 228 cm + 10% Height Adjustment (without mattress): min. 45-75 cm or wider range (approx.) (adjustable with bed dimensions) Mattress Platform: min. (88 x 200)cm + 5% Backrest angle: 0° – 64° or more Footrest angle: 0° -21° or wider Trendelenburg angle: 0° -12° or more Reverse Trendelenburg angle: 0° -13° or more Castor diameter: min. 125 mm. Under bed clearance: min, 8cm at height of 34 cm Safe Working Load: 220 kg or more. Power input: 220 + 10% VAC, 50Hz
Mattress Specification	Foam Mattress consists of foam with a density of 38 kg/m3 foam and cuttings over the full width of the mattress. CNC cutting reducing contact points so distribute and reduce pressure on human body. Air passages, provide air circulation and prevent heat accumulation. Air passages reduce perspiration. Provides with anti-bacterial, waterproof, and breathable cover. Optimal thickness is 15 cm Size: adjustable with mattress platform according to manufacturer’s standard. Density: 38±2kg/m3 Cleaning: Autoclavable at 80 deg Cover should be Flame resistant, Durable, Urine and blood resistance, Scratch-proof, Dirt resistant, Antibacterial & Antifungal, Water vapor permeable, Resistant to conventional disinfectants.
Bedside Locker Specifications	ABS /Polypropylene/ Polyethylene resin Platform Epoxy painted metallic construction. Diagonal lockable castors. External Dimensions: min. (45 x 45 x 78 cm. (± 5%).
Supplied with bed standard accessories.	Oxygen bottle Holder-01 nos. File Holder-01 nos. Lifting pole-01 nos. IV pole-01 nos. Mattress-01 nos.
Quality Standards & Safety	US-FDA/CE approved Brand and Model engraved/embossed/printed Country of manufacturer and country of shipment same Bangladesh
Warranty, Spare Parts Availability & After Sale Service	Comprehensive 1 (one) year warranty with all spare parts and accessories (without consumables) after the date of installation & commissioning (functioning). Availability of spares parts must be for 3 years after the date of installation & commissioning (functioning).

Shipping & Delivery

Inside Dhaka

Product Delivery Charge is 120 inside Dhaka

Outside Dhaka

Product Delivery Charge BDT 160 is applicable for Outside of Dhaka.
