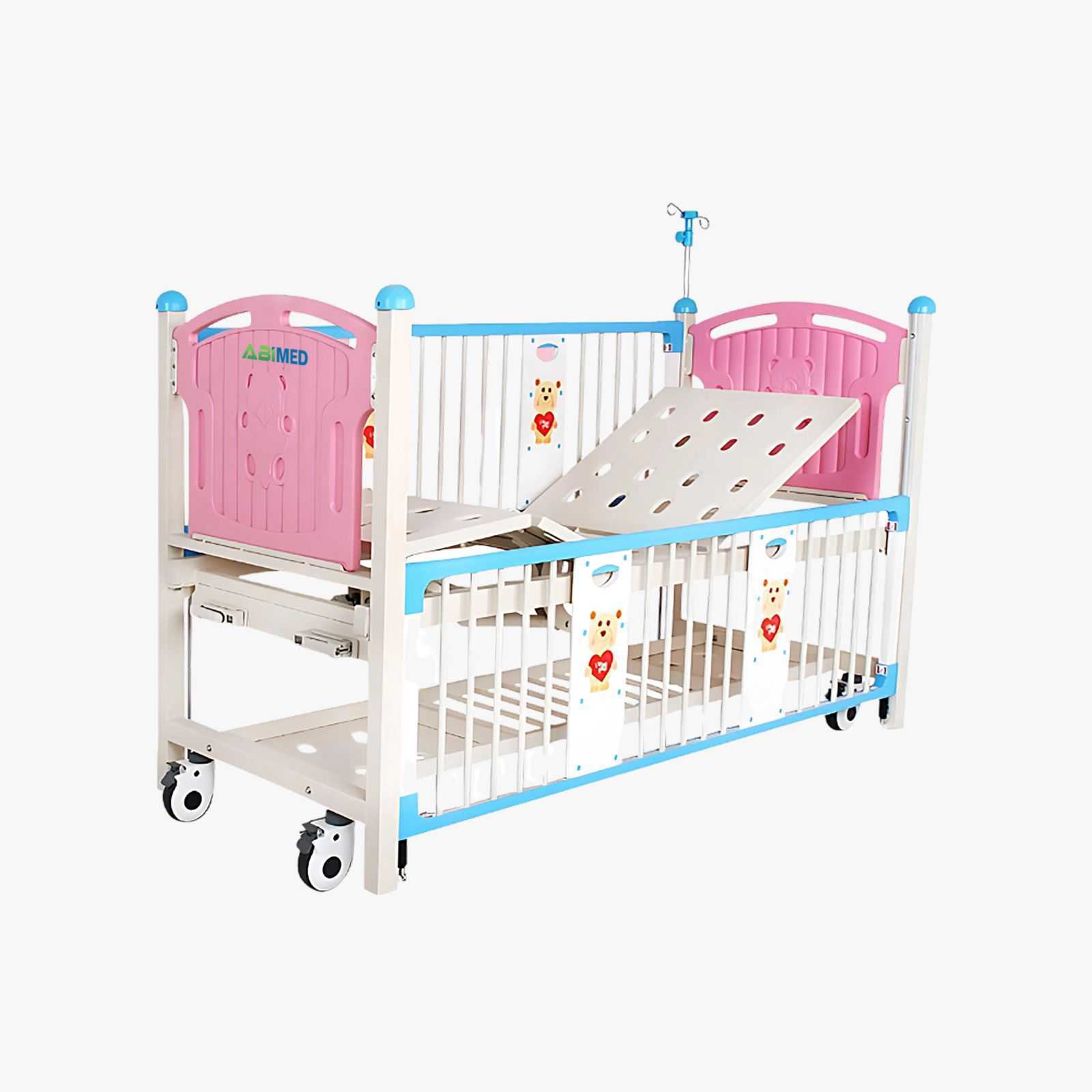

Two Function Manual Baby Bed – Technical Specification
| Item | Specification |
| Product Type | Two Function Manual Pediatric/Baby Hospital Bed |
| Operation | Manual crank system |
| Functions | 1. Backrest Adjustment 0–75° ±5° 2. Knee Rest Adjustment 0–40° ±5° |
| Bed Size | Approx. 1650 × 800 × 1050 mm (L × W × H) |
| Mattress Platform | Approx. 1500 × 700 mm |
| Height | Fixed height (approx. 700–750 mm from floor) |
| Safe Working Load | 120 kg |
| Frame Material | High-strength powder-coated mild steel |
| Bed Platform | Perforated steel sheet with epoxy powder coating |
| Head & Foot Boards | ABS molded pediatric design, detachable, impact resistant |
| Side Rails | Full-length collapsible pediatric safety rails with locking mechanism |
| Crank Handles | Two foldable manual crank handles with smooth gear mechanism |
| Mattress Support | Four-section perforated steel platform |
| IV Pole | Stainless steel telescopic IV pole with 4-hook hanger |
| Castors | 4 × 125 mm medical-grade swivel castors, two with brakes |
| Finish | Electrostatic epoxy powder coating, corrosion resistant |
| Color | White frame with pink and blue pediatric panels (or optional colors) |
| Accessories Included | IV pole, urine bag hooks, corner buffers, mattress retainers |
| Safety Features | Rounded corners, child-safe side rails, locking castors, anti-rust finish |
| Application | Pediatric ward, NICU step-down units, children’s hospital, clinics |
Manual Functions
- Backrest Adjustment
- Manual crank operated
- Adjustable angle: 0°–75°
- Smooth lifting mechanism
- Suitable for feeding, examination, and patient comfort
- Knee Rest Adjustment
- Manual crank operated
- Adjustable angle: 0°–40°
- Provides leg support and improves patient positioning
Standard Accessories
- Stainless steel IV pole
- Four locking castors
- Full-length pediatric side rails
- ABS head and foot panels
- Manual crank handles
- Corner protection buffers
Optional Accessories
- Waterproof pediatric mattress
- Oxygen cylinder holder
- Storage basket
- Bedside cabinet
- Overbed table
- Patient restraint straps
