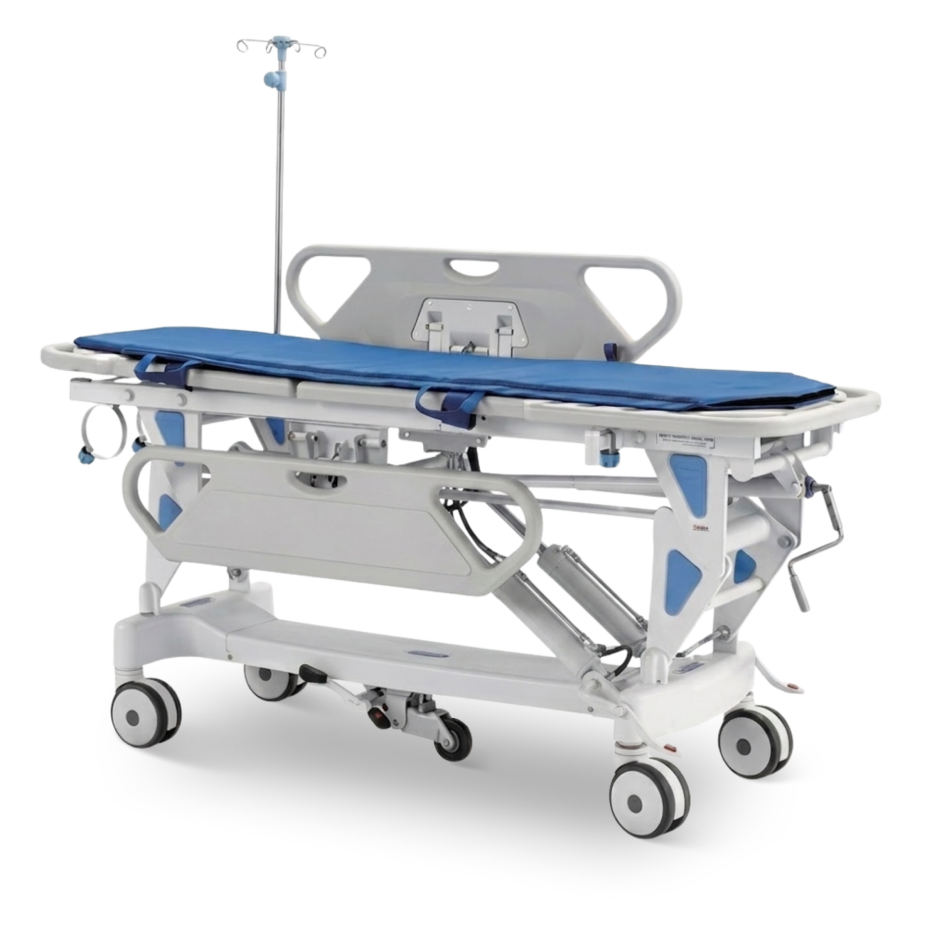

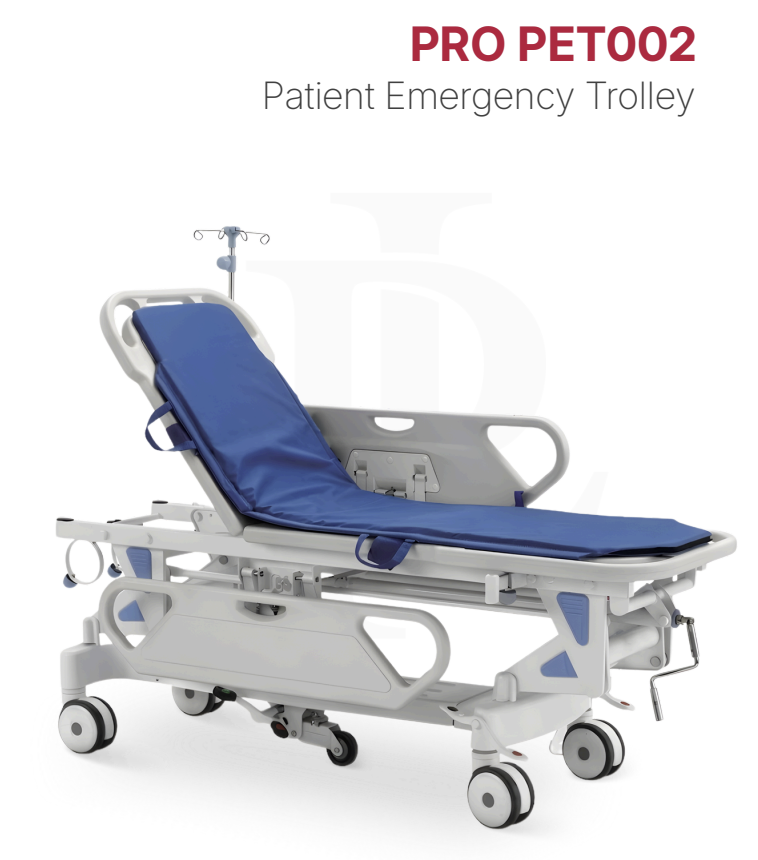

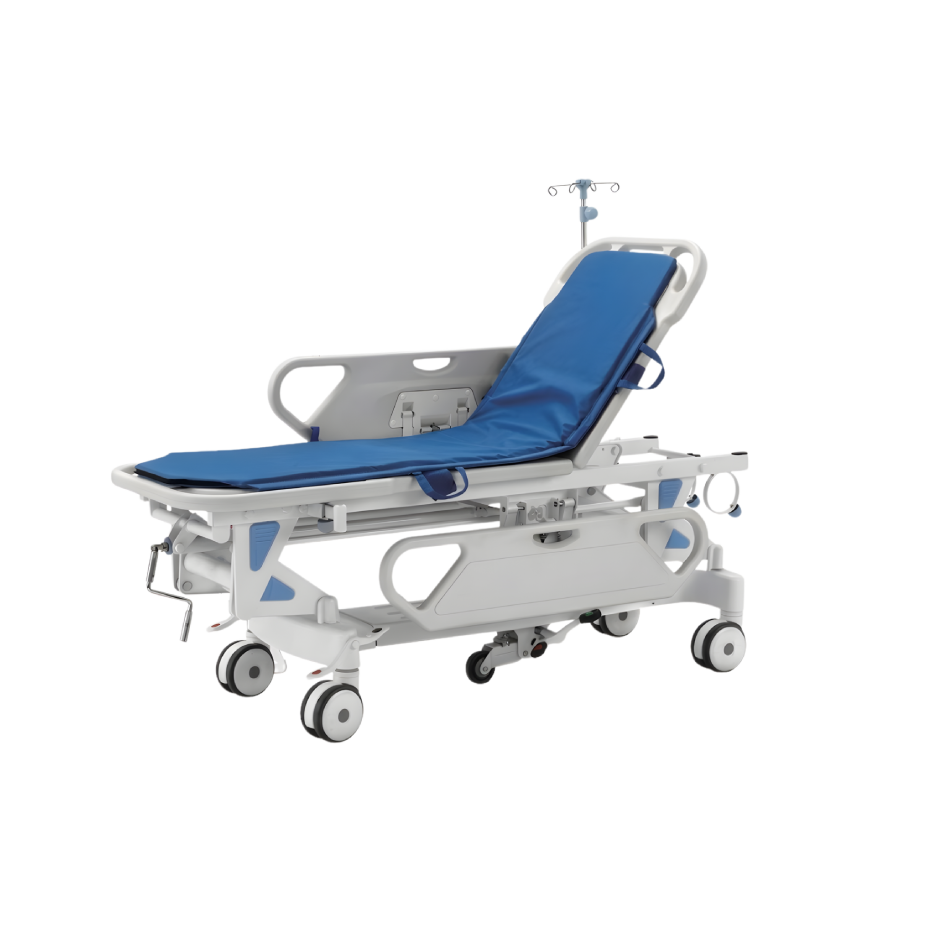

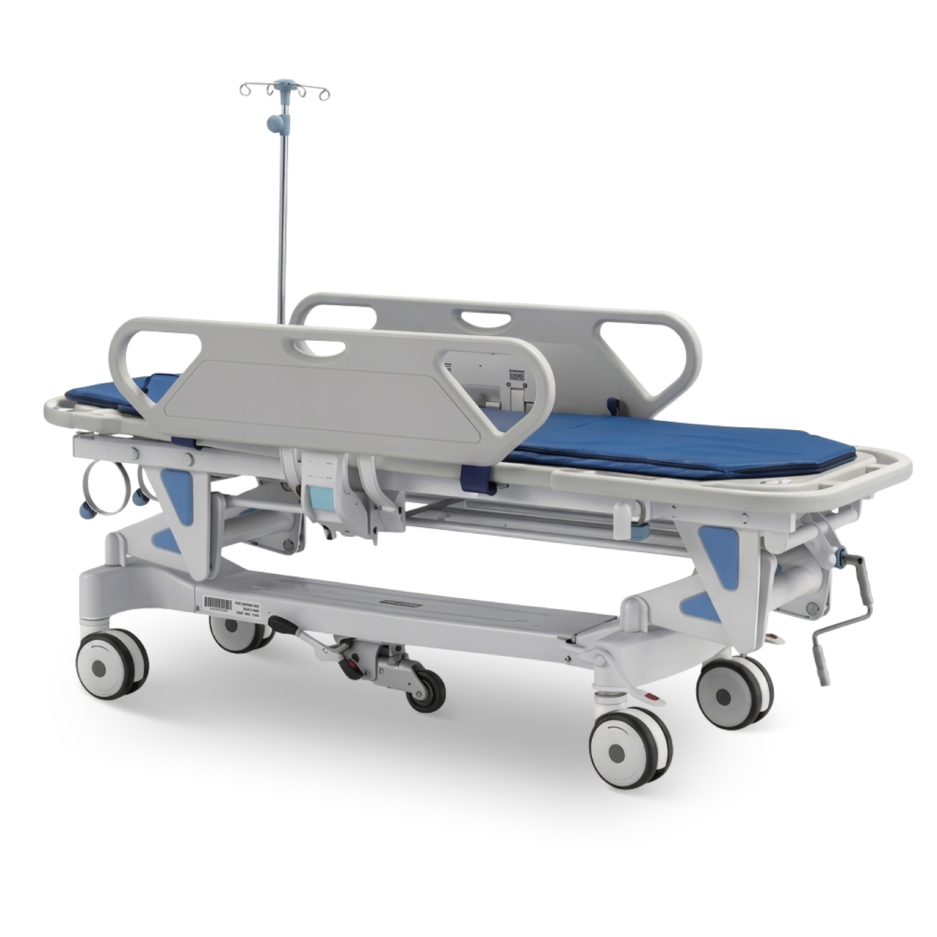

Patient Emergency Trolley
PRO PET002
📌 Product Overview
The PRO PET002 Patient Emergency Trolley is designed for modern hospital emergency and patient transfer needs. Built with high-quality materials, ergonomic design, and advanced mobility features, it ensures safety, comfort, and efficiency in critical care environments.

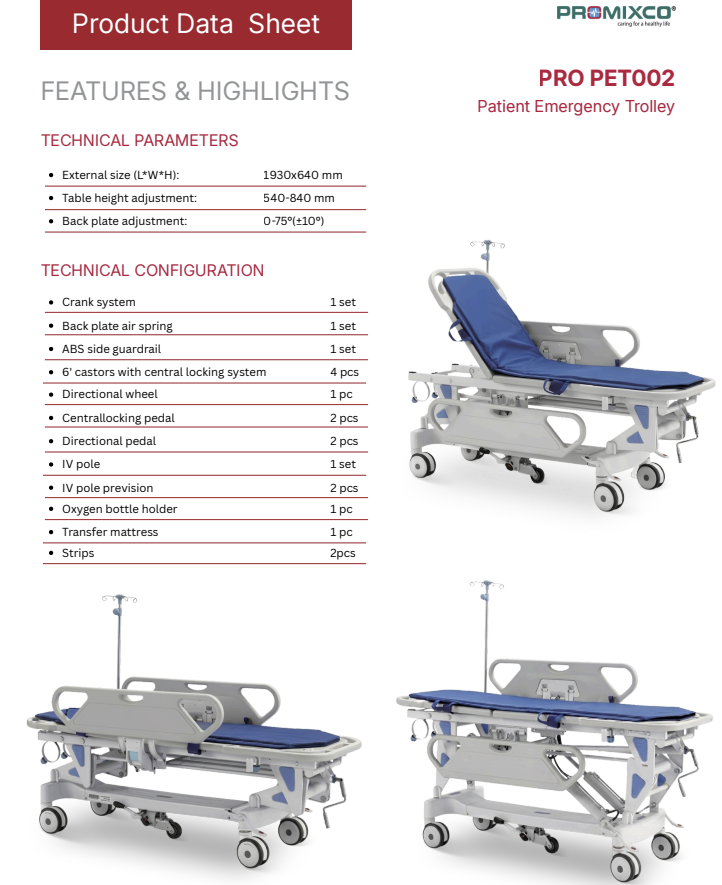

📐 Technical Parameters
| Feature | Specification |
|---|---|
| External Size (L×W) | 1930 × 640 mm |
| Table Height Adjustment | 540 – 840 mm |
| Back Plate Adjustment | 0° – 75° (±10°) |
| Backrest Elevation | Up to 70° |
| Mattress Thickness | 2 cm (Density: 28 kg/m³, dark blue) |
⚙️ Technical Configuration
- Crank system – 1 set
- Directional wheel – 1 pc
- IV pole provision – 2 pcs
- Back plate air spring – 1 set
- Central locking pedal – 2 pcs
- ABS side guardrail – 1 set
- Directional pedal – 2 pcs
- Oxygen bottle holder – 1 pc
- 6-inch castors with central locking system – 4 pcs
- IV pole – 1 set
- Transfer mattress – 1 pc
- Straps – 2 pcs

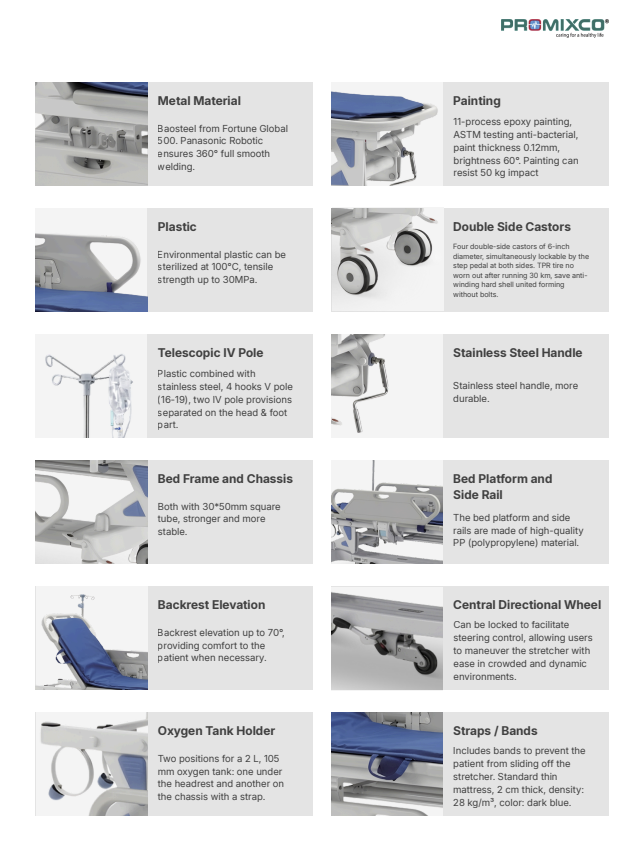

⭐ Features & Highlights
🏗️ Strong Structure
- Frame made of Baosteel (Fortune Global 500 material)
- 30×50mm square tube bed frame and chassis for stability
- Fully welded with Panasonic robotic system (360° smooth welding)
🛞 Advanced Mobility System
- 6-inch double-side castors
- Central locking system via foot pedal on both sides
- TPR tires durable up to 30 km usage without wear
- Anti-winding design, bolt-free structure
🧼 Durable & Hygienic Materials
- Medical-grade PP (polypropylene) side rails and platform
- Sterilizable plastic withstands up to 100°C
- High tensile strength up to 30MPa
🎨 Premium Finishing
- 11-step epoxy painting process
- Anti-bacterial coating (ASTM tested)
- Paint thickness: 0.12mm
- Brightness level: 60°
- Impact resistance up to 50 kg
🏥 Patient Care Features
- Adjustable backrest for patient comfort
- Oxygen bottle holder (2 positions: head & chassis)
- Safety straps to prevent patient sliding
- Standard emergency mattress included
🧲 IV & Utility System
- Stainless steel telescopic IV pole (4 hooks, 16–19 mm)
- Dual IV pole provision (head & foot section)
- Durable stainless steel handle
🎯 Control & Steering
- Central directional wheel lock for easy maneuvering
- Designed for smooth movement in emergency environments
🧪 Materials Used
- Metal: High-grade Baosteel
- Plastic: Environmental medical-grade PP
- Coating: Epoxy antibacterial paint system
