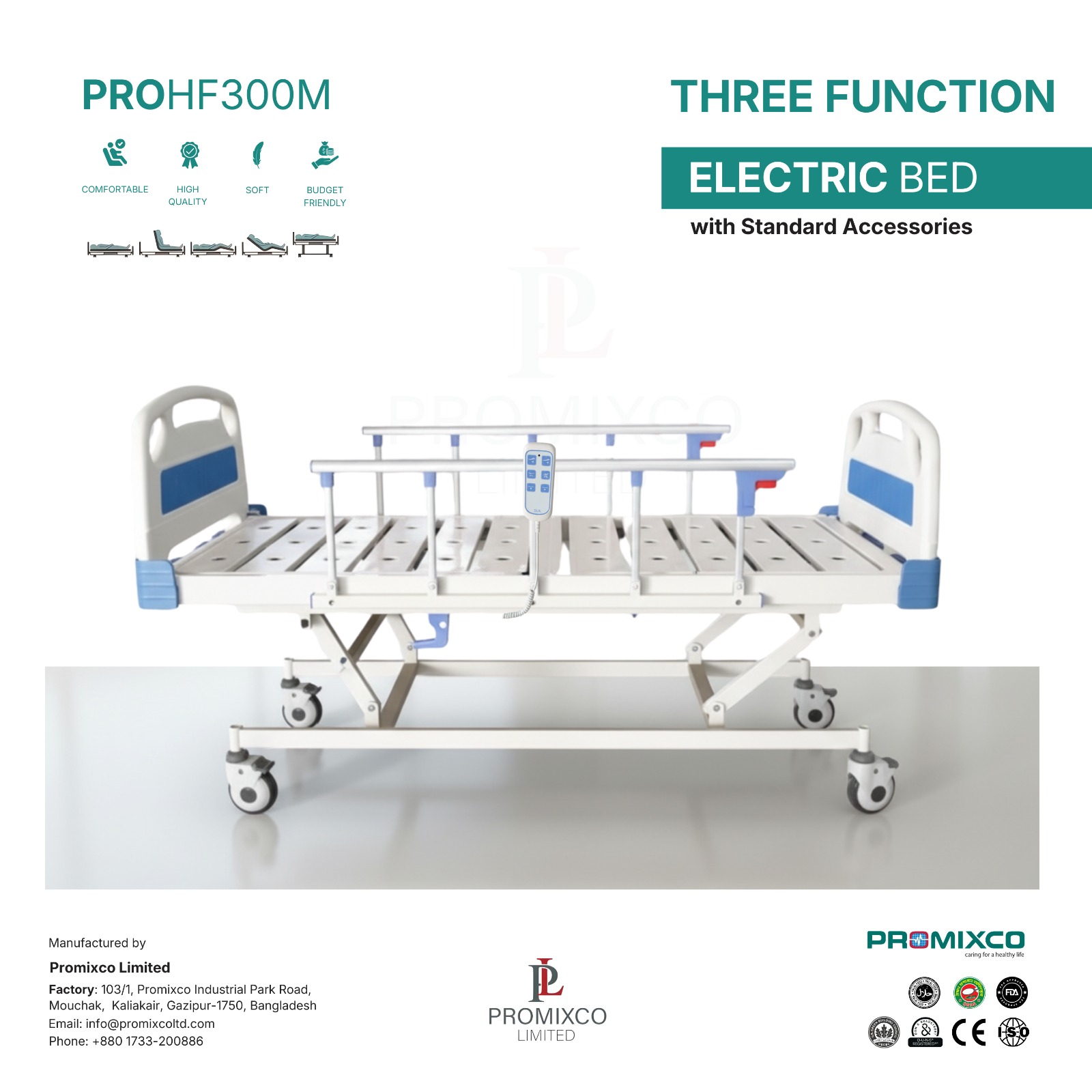

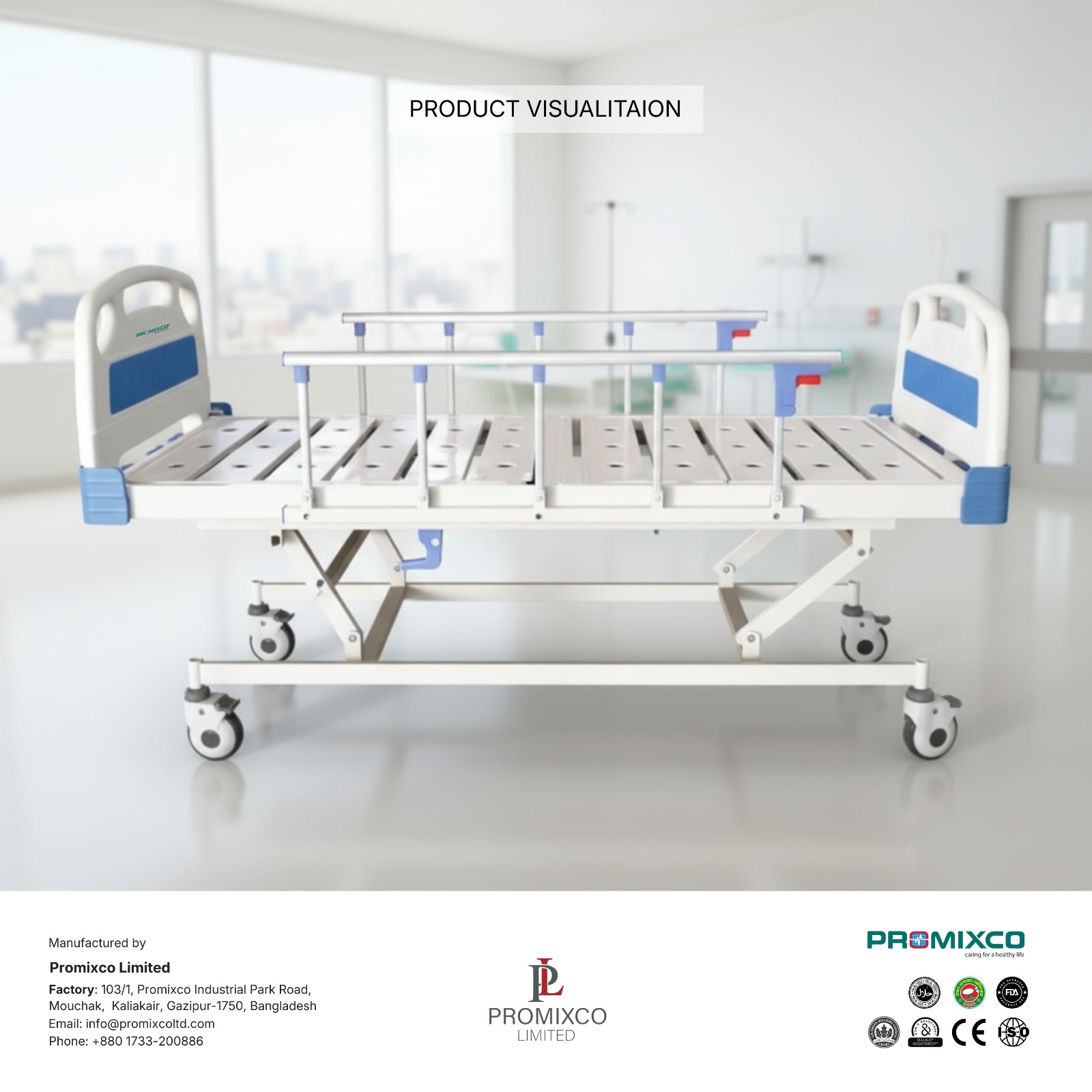

Three Function Electric Hospital Bed-Technical Specification
| Item | Specification |
| Product Type | Three-Function Electric Hospital Bed |
| Operation | Electric motor driven with handheld controller |
| Functions | 1. Backrest Adjustment 2. Knee Rest Adjustment 3. Hi-Low (Height) Adjustment |
| Overall Dimensions | Approx. L 2160 mm × W 940 mm × H 500–740 mm |
| Maximum Patient Weight | 200 kg |
| Bed Frame | Heavy-duty mild steel with epoxy powder-coated finish |

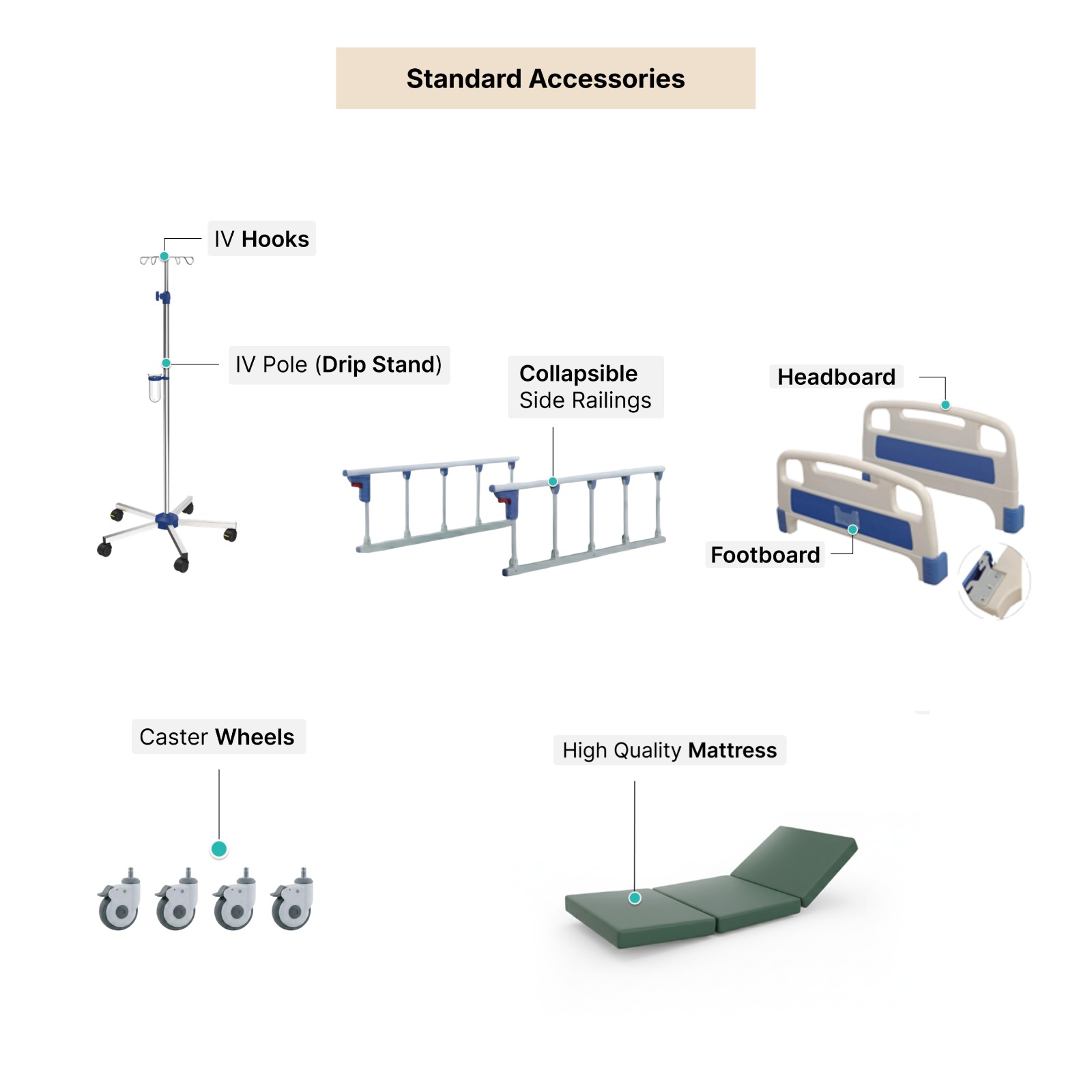

| Head & Foot Boards | Detachable high-strength ABS molded panels with corner bumpers |
| Side Rails | Foldable Collapsible safety side rails with locking system |
| Electric Motors | Three low-noise DC electric Motors |
| Control Unit | Electronic control box with overload protection |
| Backrest Adjustment | 0°–90° |
| Knee Rest Adjustment | 0°–45° |
| Foam Mattress | 4 Inch |
| Castors | Four 5’’ medical-grade swivel castors with braking system |
| IV Pole | Stainless steel telescopic IV pole with 4 hooks |
| Power Supply | 220–240 V AC, 50/60 Hz (or 110 V AC, as required) |
| Warranty | 1 year Service |
