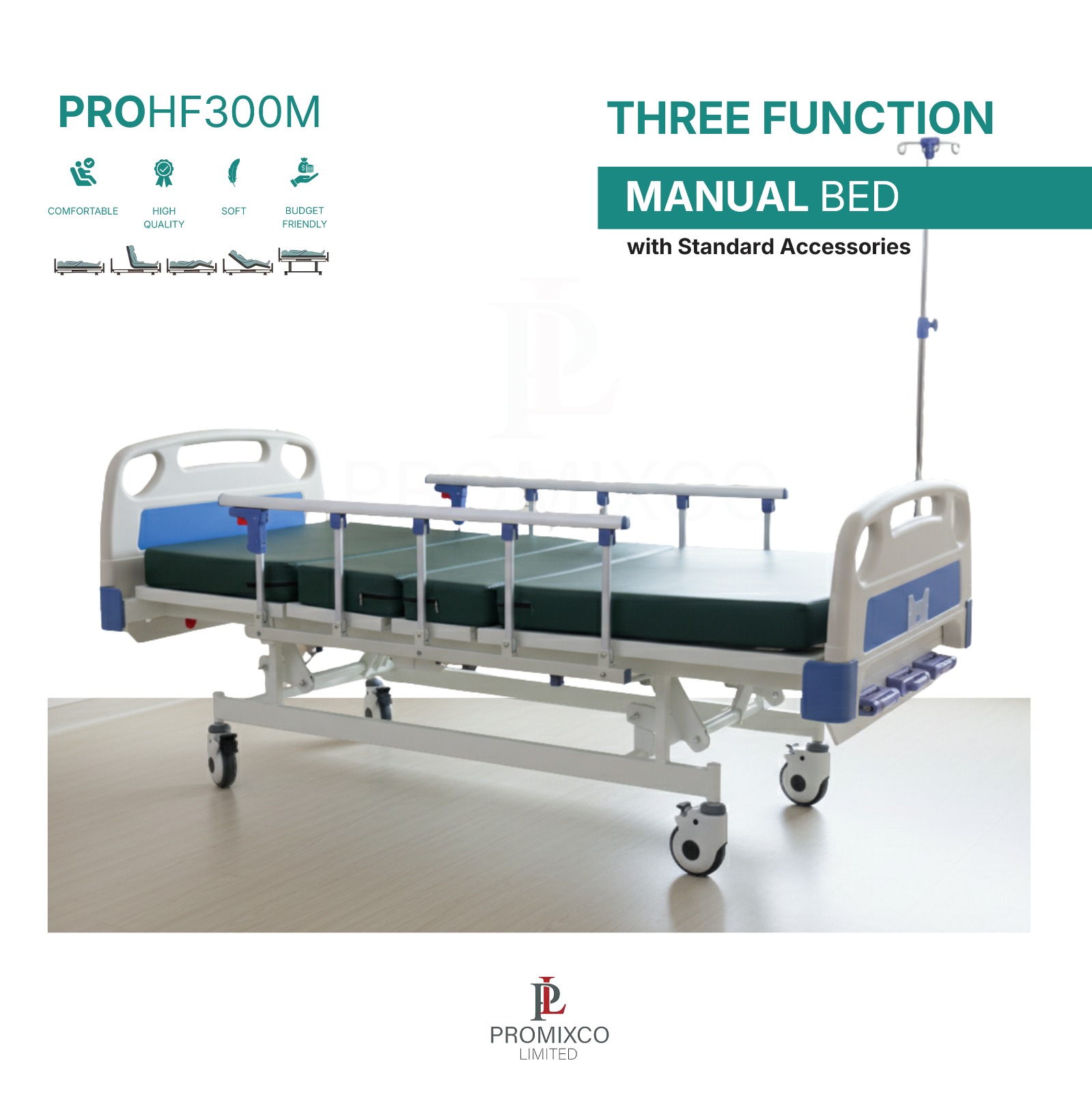

Three Function Manual Hospital Bed –Technical Specification
| Item | Specification |
| Product Type | Three Function Manual Hospital Bed |
| Bed Type | General Ward / Patient Care Bed |
| Operation | Manual crank operation |
| Functions | 1. Backrest Adjustment (0°–90°) 2. Knee Rest Adjustment (0°–45°) |
| Overall Dimensions | L 2030 mm × W 900 mm ×500-740mm(H) (Adjustable Height). |
| Mattress Platform | 4 Inch |
| Safe Working Load | Maximum 200 kg |
| Maximum Patient Weight | 170–180 kg |
| Bed Frame | Mild steel rectangular tube construction with epoxy powder coating |
| Head & Foot Boards | High-strength ABS detachable panels with corner protectors |

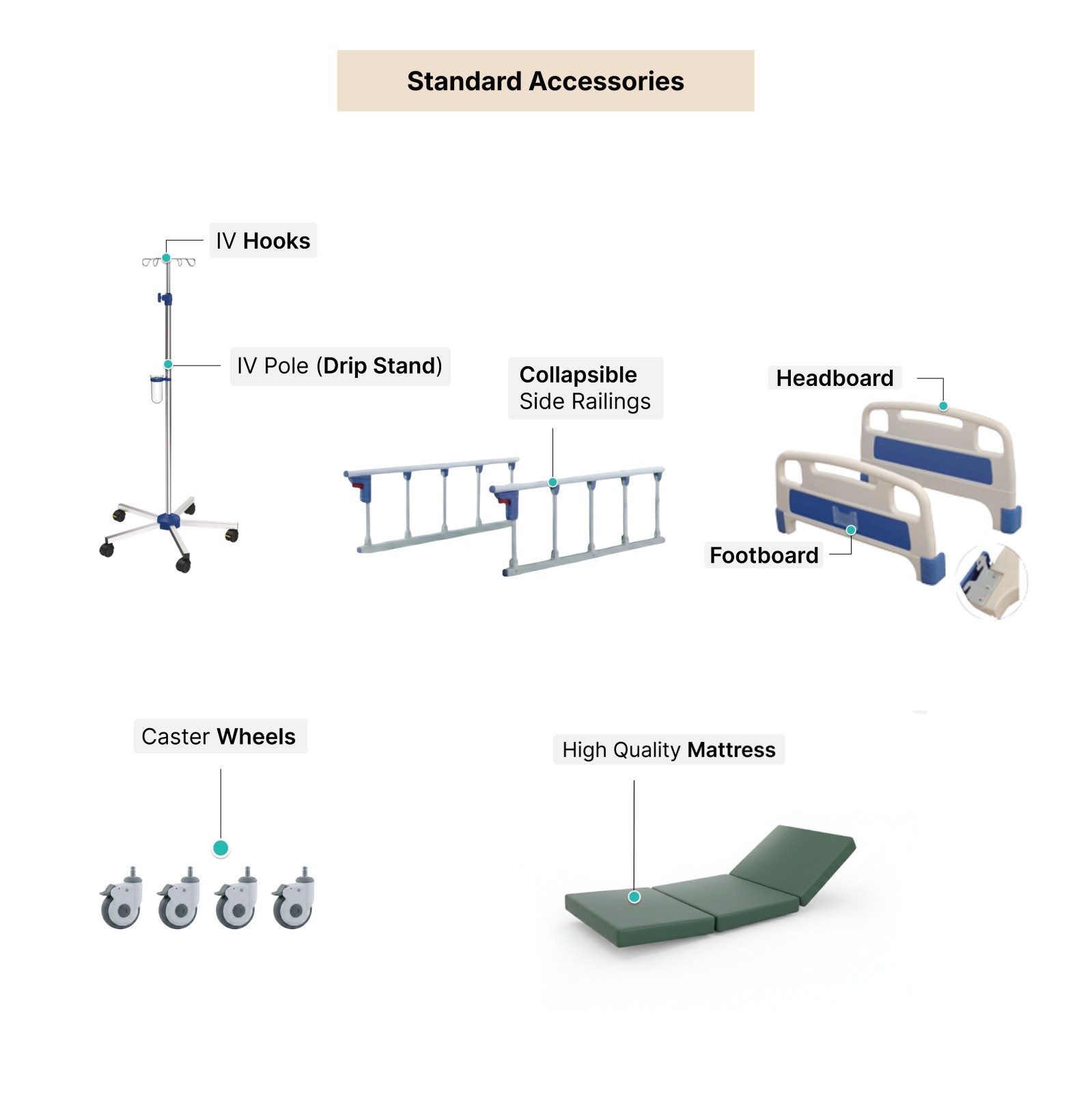

| Side Rails | Foldable aluminum alloy side rails with safety locking mechanism |
| Manual Cranks | Three foldable ABS hand cranks located at the foot end |
| Caster Wheels | Four 5 Inch swivel castors with individual brakes |
| IV Pole | Stainless steel telescopic IV pole with 4-hook top |
| Finish | Electrostatic epoxy powder-coated finish |
| Color | White frame with blue accent panels |
| Corrosion Protection | Anti-rust phosphate treatment before powder coating |
| Warranty | 1 year Service |
