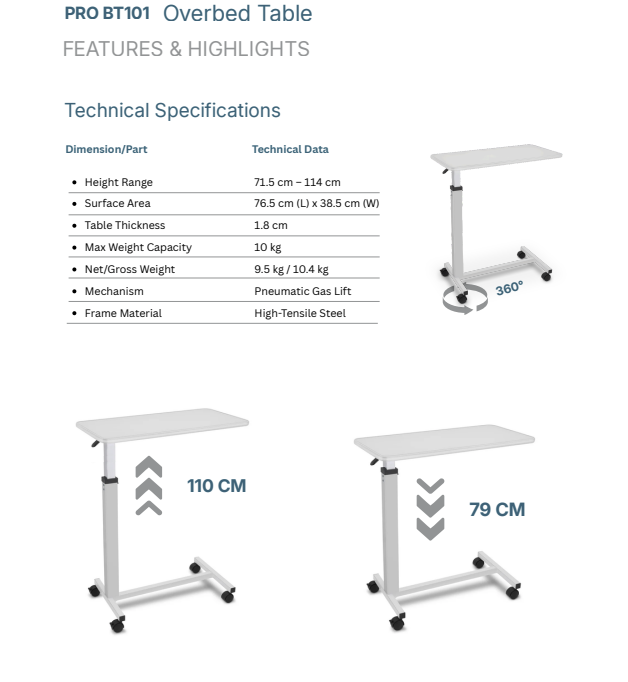

Technical Specifications
| Parameter | Details |
|---|---|
| Height Range | 71.5 cm – 114 cm |
| Surface Area | 76.5 cm (L) × 38.5 cm (W) |
| Table Thickness | 1.8 cm |
| Max Weight Capacity | 10 kg |
| Net / Gross Weight | 9.5 kg / 10.4 kg |
| Adjustment Mechanism | Pneumatic Gas Lift |
| Frame Material | High-Tensile Steel |

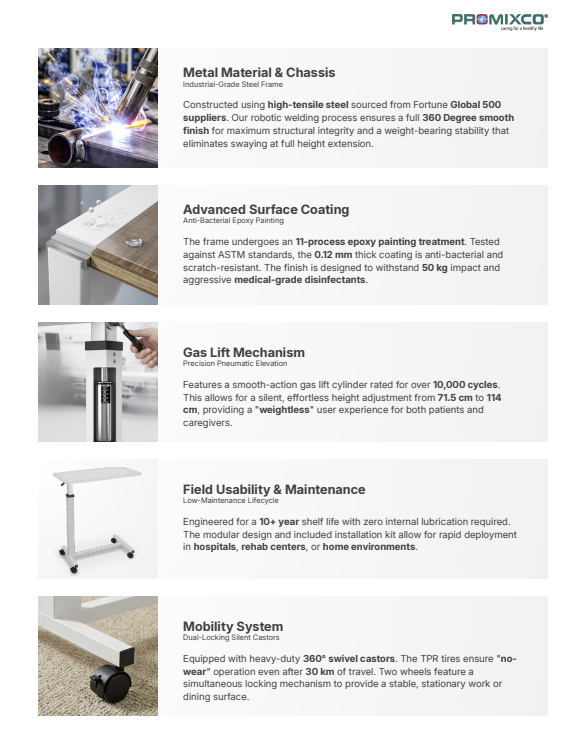

Key Features & Highlights
1. Industrial-Grade Steel Frame
Constructed using high-tensile steel sourced from Fortune Global 500 suppliers. Robotic welding ensures a smooth 360° finish, providing superior structural integrity and eliminating wobbling even at full height extension.
2. Advanced Surface Coating (Anti-Bacterial Epoxy)
The frame undergoes an 11-stage epoxy coating process compliant with ASTM standards.
- 0.12 mm coating thickness
- Anti-bacterial and scratch-resistant
- Withstands up to 50 kg impact
- Resistant to medical-grade disinfectants
3. Precision Pneumatic Gas Lift
Smooth and silent gas lift system rated for 10,000+ cycles.
Enables effortless height adjustment from 71.5 cm to 114 cm, ensuring convenience for both patients and caregivers.
4. Low-Maintenance Lifecycle
Designed for 10+ years of service life with no internal lubrication required.
Modular design allows quick installation and easy deployment in:
- Hospitals
- Rehabilitation centers
- Home care environments
5. Dual-Locking Silent Castors
Heavy-duty 360° swivel wheels with TPR tires:
- No-wear operation (tested up to 30 km movement)
- Silent mobility
- Dual-lock system for stable positioning
