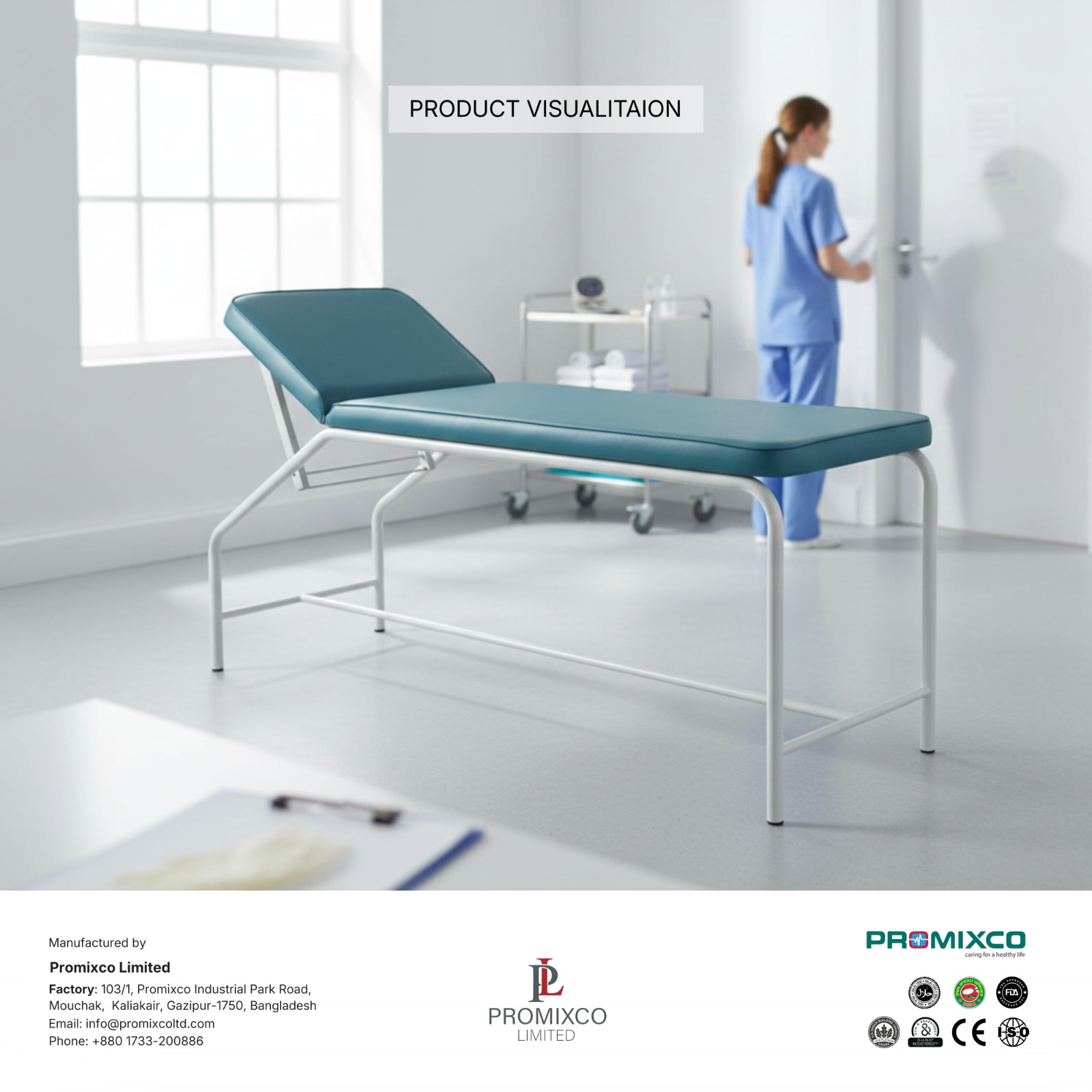

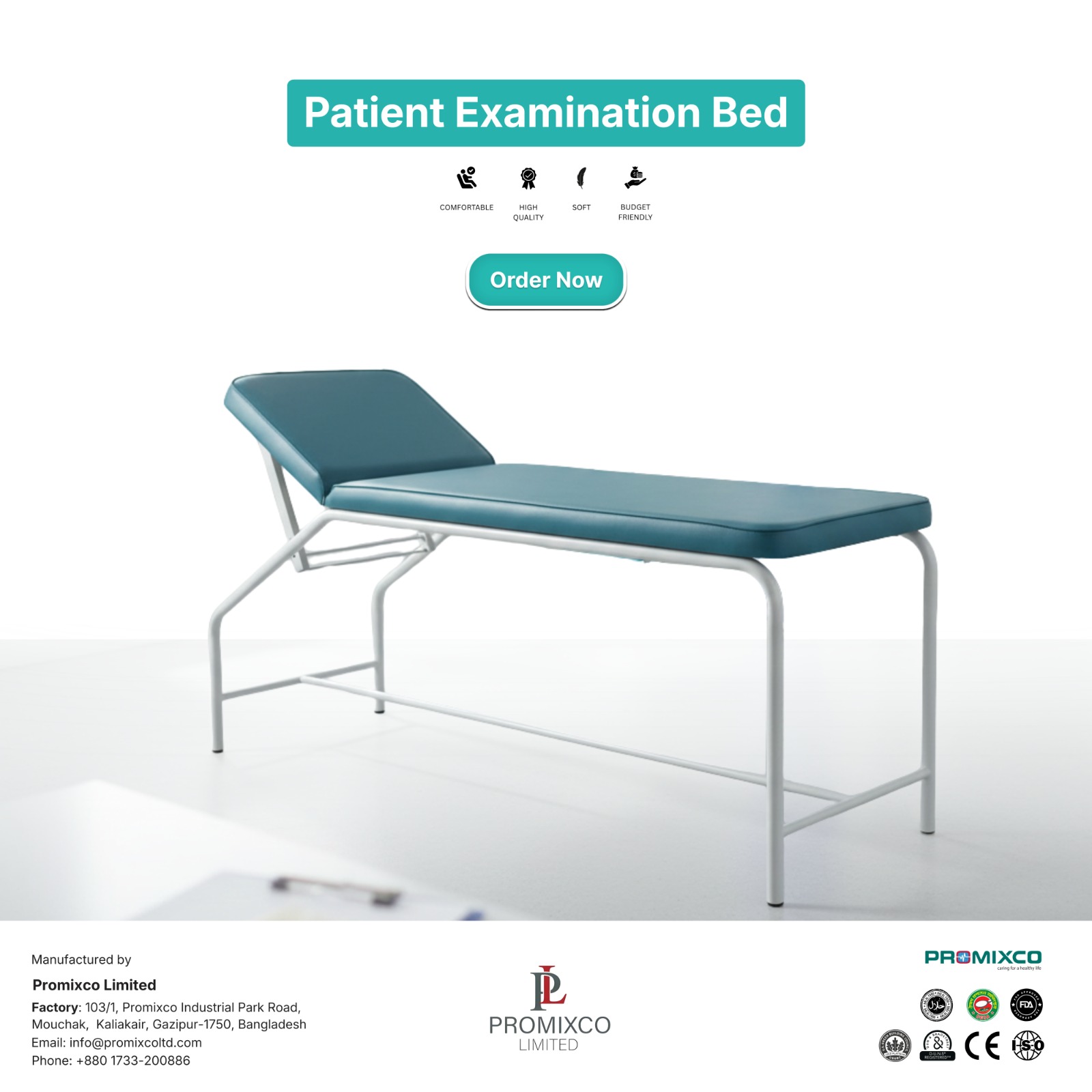

Patient Examination Bed – Technical Specification
| Item | Specification |
| Product Name | Patient Examination Bed |
| Overall Size | 1900 × 600 × 750 mm (L × W × H) |
| Frame Material | Mild Steel (MS) |
| Bed Frame | Constructed from 25 × 50 mm rectangular MS steel pipe, wall thickness 1.2 mm |
| Bed Legs | 32 × 32 mm MS steel pipe, wall thickness 1.2 mm |
| Backrest | Adjustable backrest with manual crank adjustment |
| Backrest Adjustment Angle | 0°–45° |
| Adjustment System | Manual crank mechanism with smooth and secure operation |
| Bed Surface | Two-section cushioned top (backrest and fixed lying surface) |
| Mattress | High-density foam mattress, upholstered with waterproof, antibacterial, and easy-to-clean PU cover |
| Finish | Powder-coated epoxy finish for corrosion and scratch resistance |
| Load Capacity | Minimum 180 kg |
| Feet | Non-slip PVC leg caps for stability and floor protection |
| Application | Suitable for hospitals, clinics, outpatient departments (OPD), diagnostic centers, and examination rooms |
