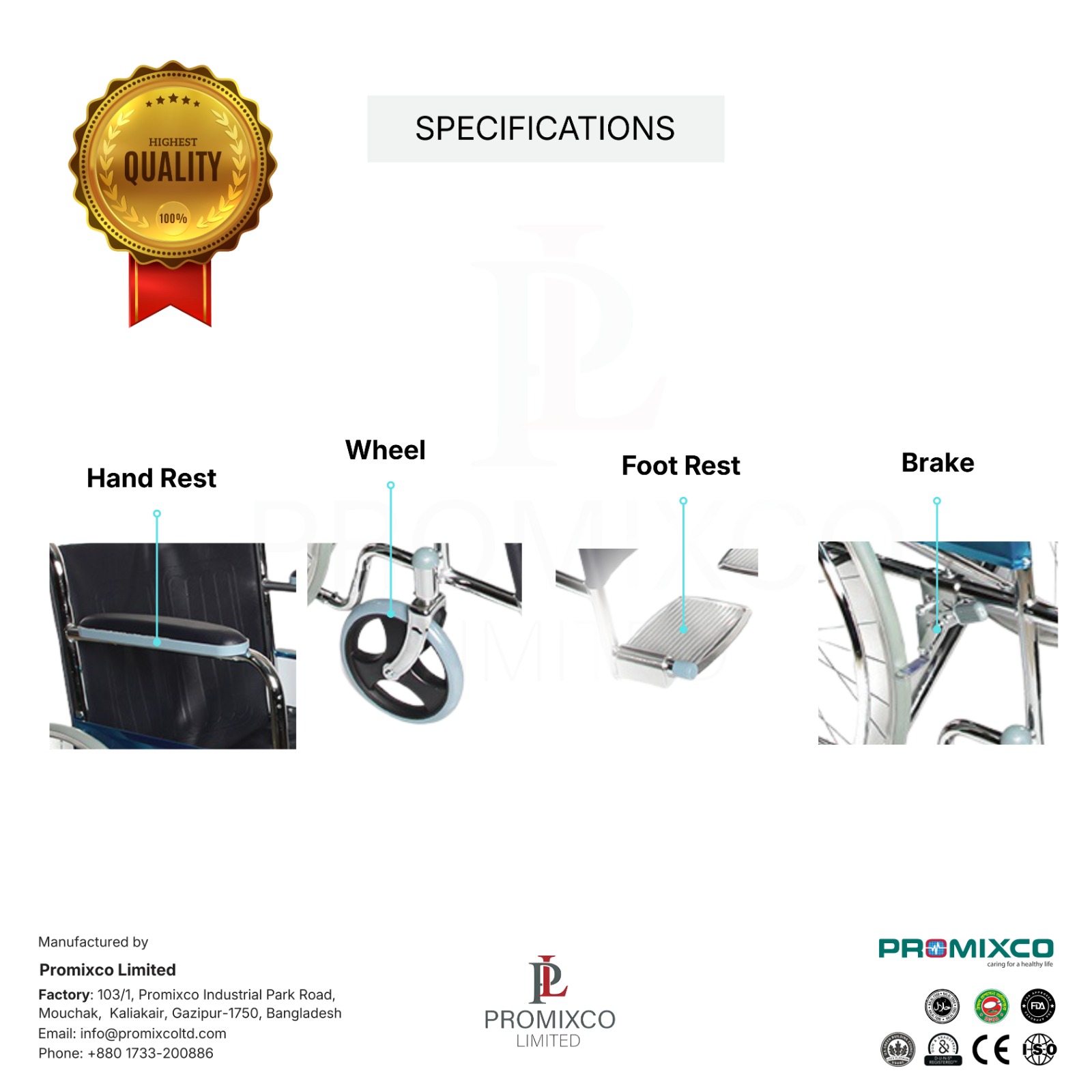

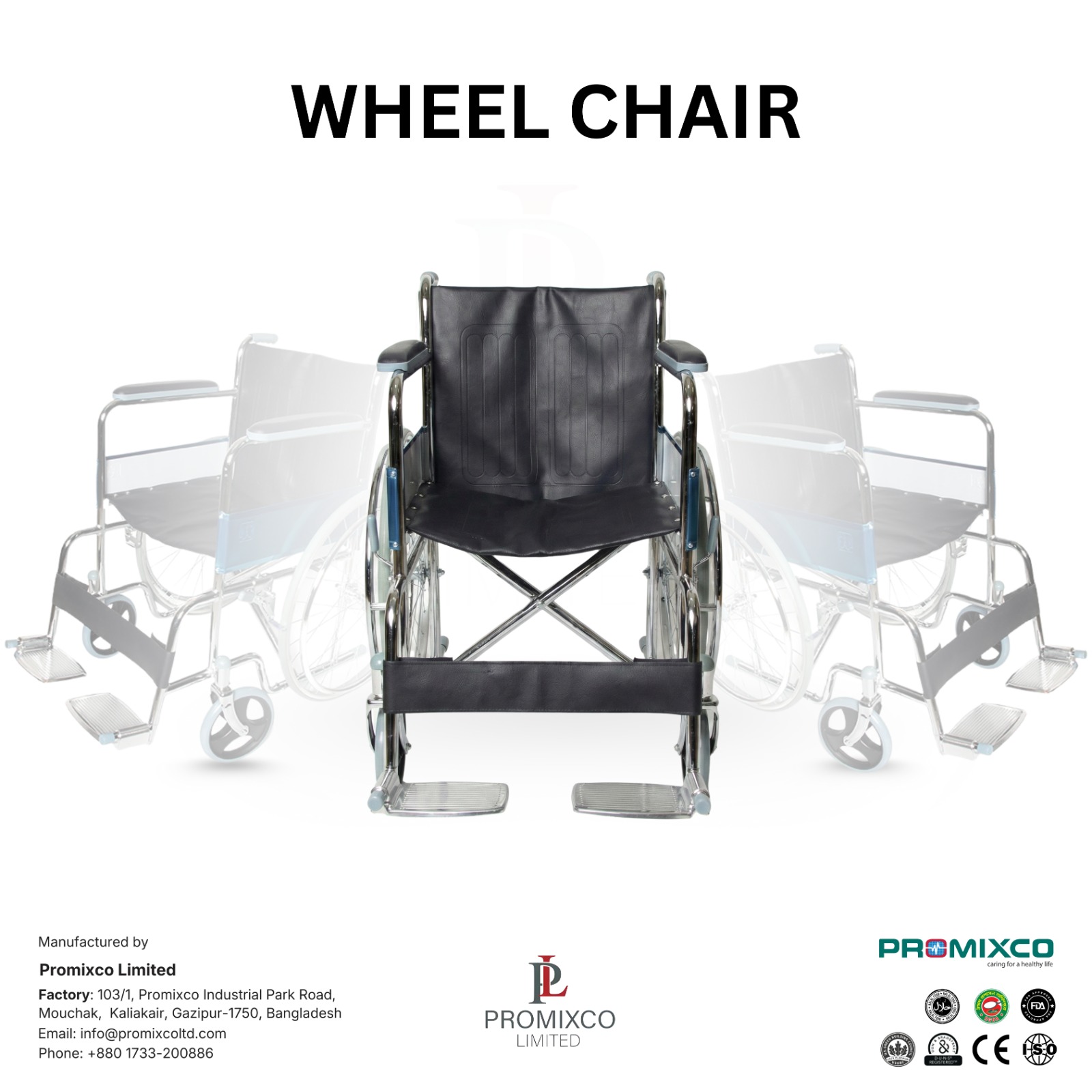

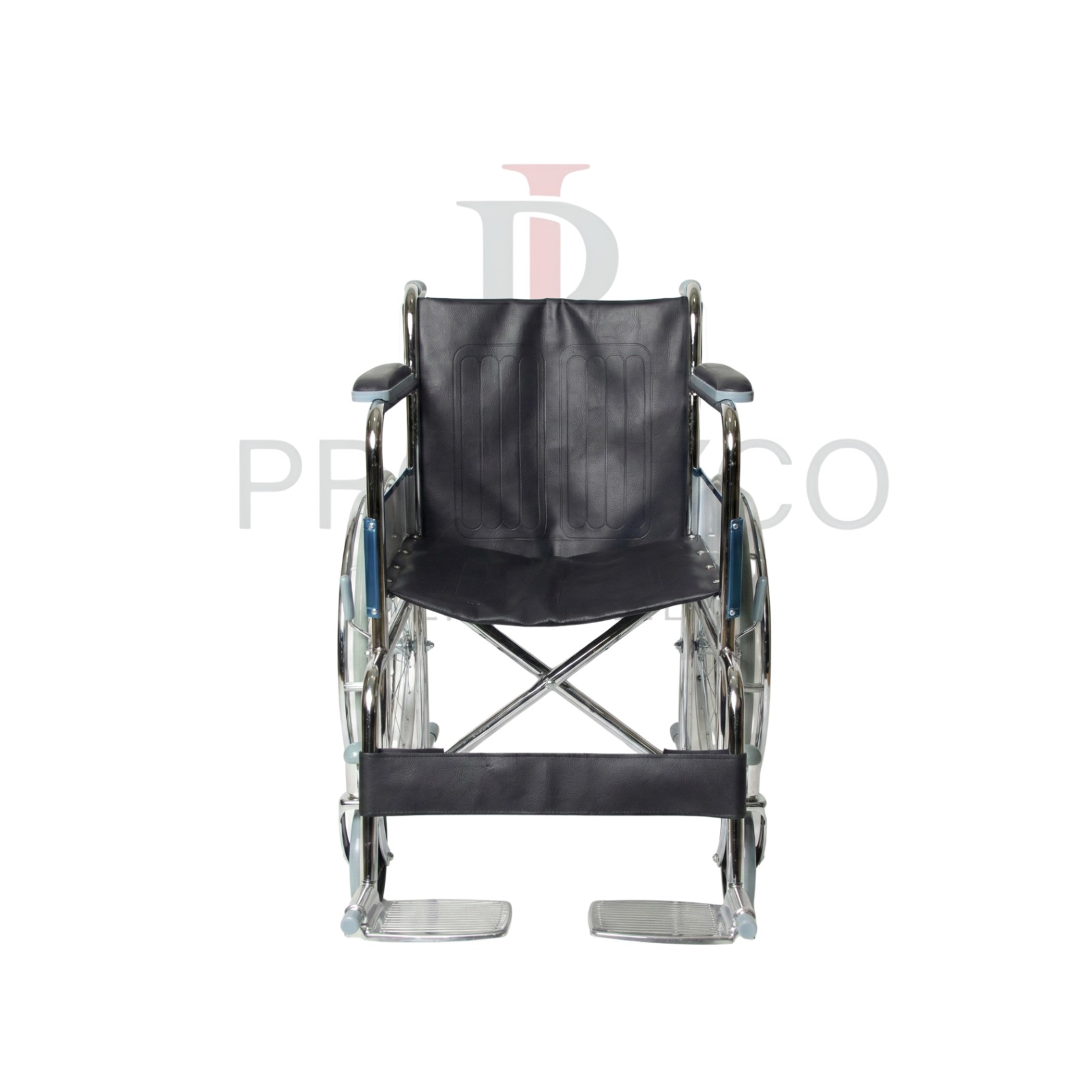

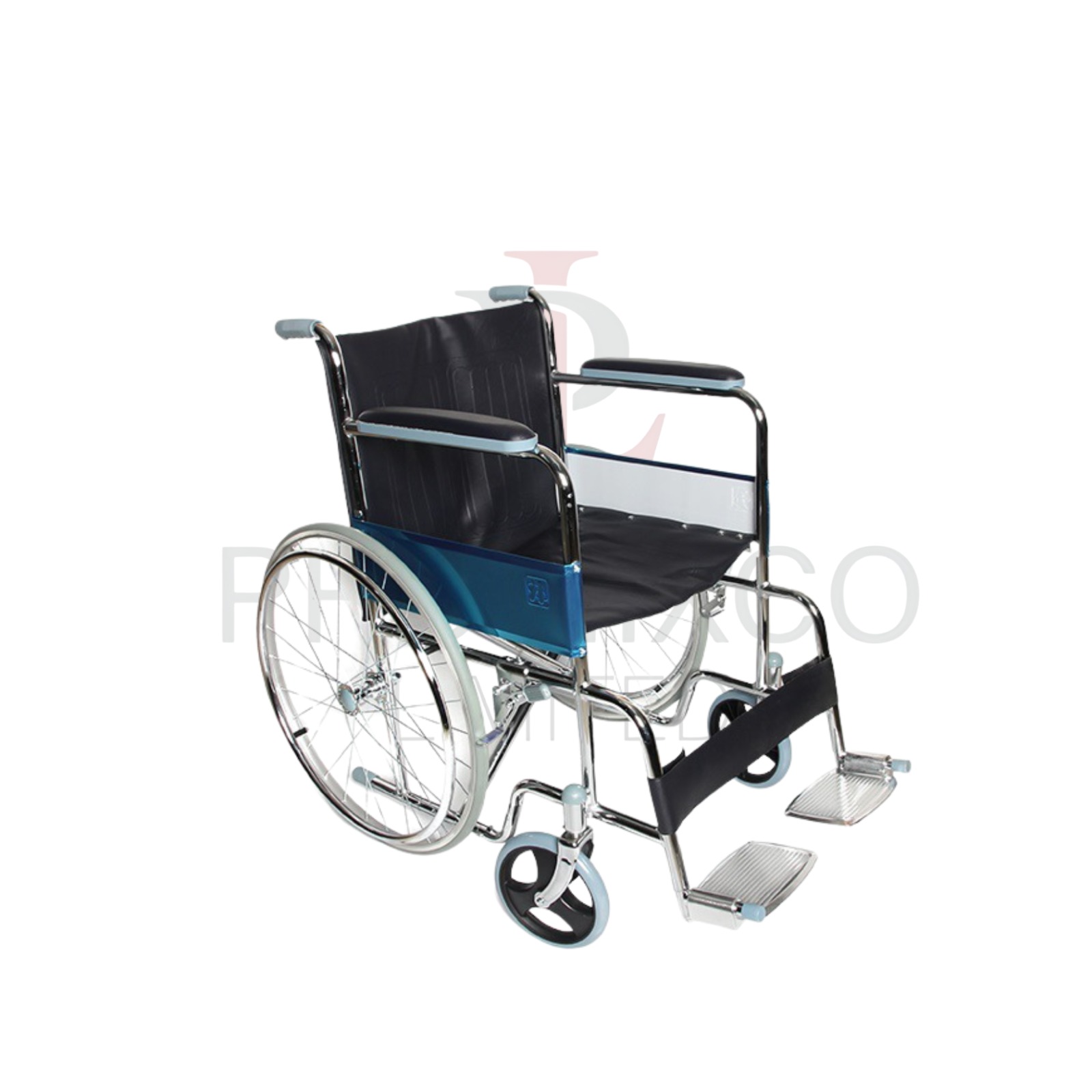

Wheelchair – Technical Specification
| Item | Specification |
| Product Name | Manual Foldable Wheelchair |
| Type | Standard Manual Folding Wheelchair |
| Frame Material | Heavy-duty tubular steel frame with durable epoxy powder-coated finish |
| Frame Diameter | Approx. 25 mm |
| Patient Support | Metal patient support in 2 sections |
| Seat & Backrest | Padded seat and backrest upholstered with medical-grade PVC material |
| Upholstery Material | Flexible, highly tear-resistant, anti-static, flame-retardant, waterproof, disinfectant-resistant, washable PVC |
| Overall Dimensions | Approx. 450 × 500 × 850 mm (D × W × H) |
| Back Support Size | Approx. 500 × 400 mm (W × H) |
| Wheel Configuration | Four-wheel design with heavy-duty ball-bearing system |
| Front Wheels | Approx. 200 mm diameter, anti-static, solid rubber, 360° swivel castors |
| Rear Wheels | Approx. 600 mm diameter, anti-static, solid rubber with hand rims |
| Wheel Bearings | Heavy-duty ball-bearing mounted wheels for smooth movement |
| Braking System | Manual brakes fitted on both rear wheels |
| Footrests | Swing-away, detachable footrests with footplates for easy patient transfer |
| Armrests | Swing-away padded armrests for easy access and patient comfort |
| Handles | Two rear push handles with ergonomic plastic grips |
| Tilting Feature | Integrated foot-operated tipping lever for negotiating curbs and obstacles |
| Folding Mechanism | Quick-folding frame for convenient storage and transportation |
| Tyres | Heavy-duty solid rubber, maintenance-free |
| Load Capacity | Minimum 150 kg |
| Cleaning & Maintenance | Smooth, waterproof surfaces suitable for routine hospital disinfection |
